A Hydraulic Equal Tee is an essential component in hydraulic systems, designed to evenly split or combine fluid flow in three directions. With three equally sized openings, it guarantees consistent fluid distribution while maintaining system pressure without any leaks. Crafted with precision and high-quality materials, Hydraulic Equal Tees are crucial for applications that require reliable branching of hydraulic lines, all while minimizing energy loss and ensuring stability in high-pressure situations.

Hydraulic Equal Tee Supplier in Manama, CS Hydraulic Equal Tee Manufacturer in Riffa , Bahrain, DIN 2353 Hydraulic Tee Exporter in Hamad Town, Hydraulic Equal Tee Assembled & Un Assembled Supplier in Manama, CS Hydraulic Equal Tee Exporter in Sitrah, DIN 2353 Hydraulic Tee Manufacturer in Riffa , Bahrain, Hydraulic Equal Tee Manufacturer in Hamad Town

Typically made from carbon steel, stainless steel, or brass, these tees boast impressive tensile strength, corrosion resistance, and durability even under extreme pressures. The materials used provide excellent mechanical properties, including high yield strength, vibration resistance, and outstanding fatigue performance, ensuring that connections remain long-lasting and leak-proof, even in demanding hydraulic circuits.

Hydraulic Equal Tee Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
MATERIAL
SERIES	LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE
CONNECTIONS	WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL
BODY TYPE	FORGED, BAR STOCK
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)
EQUIVALENT BRANDS	PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS
APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT

Top Hydraulic Equal Tee Manufacturing Company in Manama

At Anwar Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Equal Tee in Manama, Bahrain. Our advanced manufacturing facilities, strategically positioned in the Bahrain, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

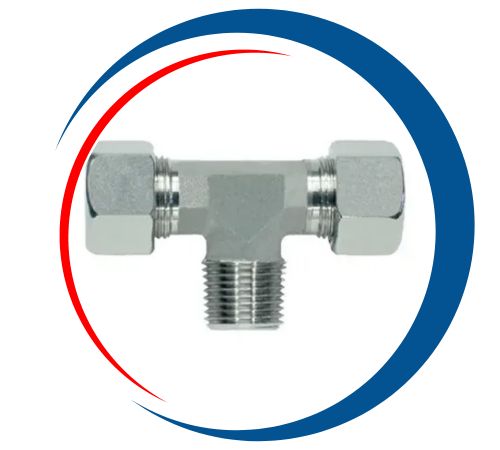

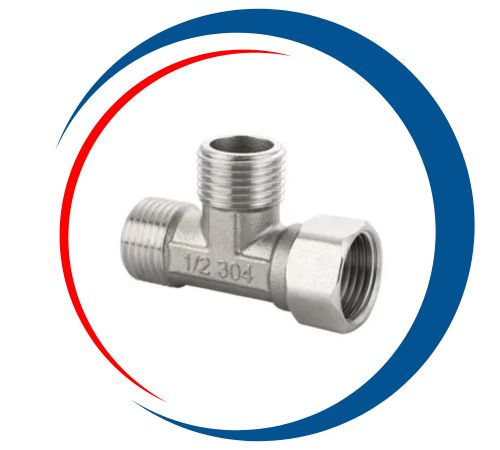

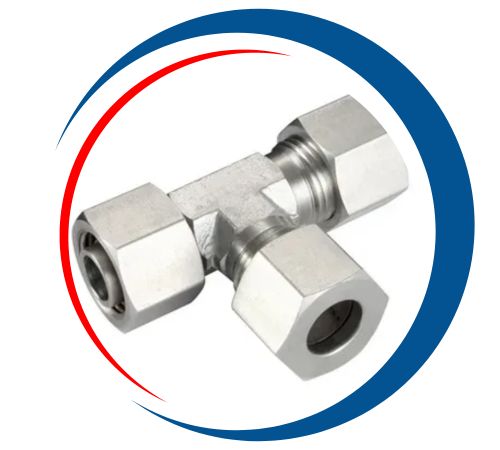

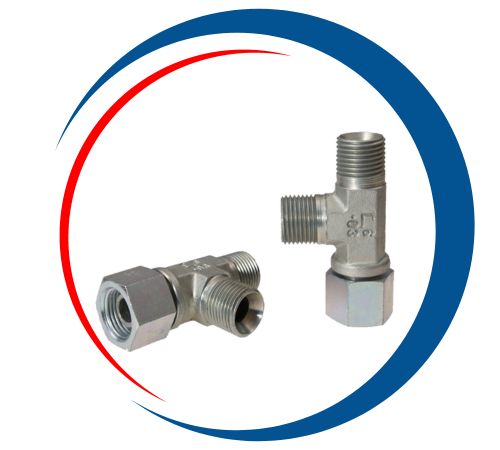

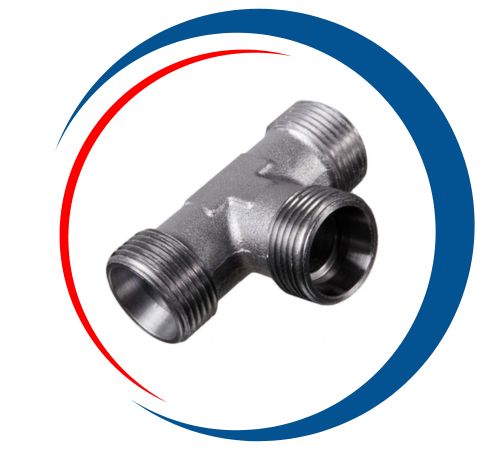

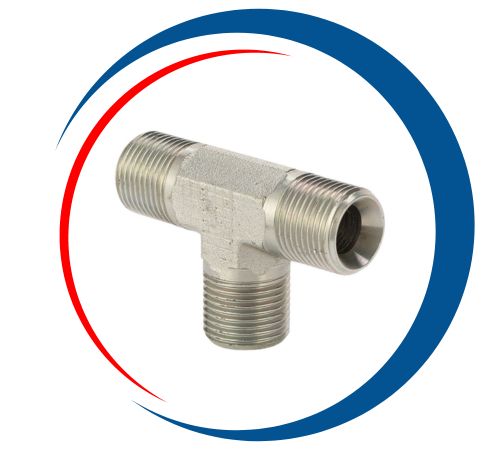

Types of Hydraulic Equal Tee

Dimensions of Hydraulic Equal Tee

Thread	CH	L1	L2	T	Pressure PN	Weight kg 100pcs	Series
Thread F1	mm	mm	mm	mm	bar
12×1,5	12	12	27	6	315	6,3	L
12×1,5	12	12	27	6	315	6,3	L
14×1,5	12	14	29	8	315	8,5	L
14×1,5	12	14	29	8	315	8,5	L
16×1,5	14	15	30	10	315	11,5	L
16×1,5	14	15	30	10	315	11,5	L
18×1,5	17	17	32	12	315	15,0	L
18×1,5	17	17	32	12	315	15,0	L
22×1,5	19	21	36	15	315	24,5	L
22×1,5	19	21	36	15	315	24,5	L
26×1,5	24	23,5	40	18	315	35,8	L
26×1,5	24	23,5	40	18	315	35,8	L
30×2	27	27,5	44	22	160	47,9	L
30×2	27	27,5	44	22	160	47,9	L
36×2	36	30,5	47	28	160	74,5	L
36×2	36	30,5	47	28	160	74,5	L
45×2	41	34,5	56	35	160	100,0	L
45×2	41	34,5	56	35	160	100,0	L
52×2	50	40	63	42	160	150,0	L
52×2	50	40	63	42	160	150,0	L
14×1,5	12	16	31	6	630	11,0	S
14×1,5	12	16	31	6	630	11,0	S
16×1,5	14	17	32	8	630	14,2	S
16×1,5	14	17	32	8	630	14,2	S
18×1,5	17	17,5	34	10	630	19,1	S
18×1,5	17	17,5	34	10	630	19,1	S
20×1,5	17	21,5	38	12	630	24,3	S
20×1,5	17	21,5	38	12	630	24,3	S
22×1,5	19	22	40	14	630	30,2	S
22×1,5	19	22	40	14	630	30,2	S
24×1,5	24	24,5	43	16	400	39,8	S
24×1,5	24	24,5	43	16	400	39,8	S
30×2	27	26,5	48	20	400	60,0	S
30×2	27	26,5	48	20	400	60,0	S
36×2	36	30	54	25	400	112,0	S
36×2	36	30	54	25	400	112,0	S
42×2	41	35,5	62	30	400	146,0	S
42×2	41	35,5	62	30	400	146,0	S
52×2	50	41	72	38	315	206,0	S
52×2	50	41	72	38	315	206,0	S

Hydraulic Equal Tee Assembled & Un Assembled Manufacturer in Riffa , SS Hydraulic Equal Tee Exporter in Manama, Hydraulic Reducing Tee Exporter in Hamad Town, DIN 2353 Hydraulic Tee Supplier in Sitrah, Hydraulic Equal Tee Assembled & Un Assembled Exporter in A'ali, Hydraulic Reducing Tee Supplier in A'ali, Hydraulic Equal Tee Stockist in Riffa , Bahrain

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Hydraulic Equal Tee in Manama, Bahrain

Anwar Tube Fittings is a leading supplier and stockist of premium Hydraulic Equal Tee in Manama, Bahrain. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Equal Tee Uses

You’ll find Hydraulic Equal Tees in a variety of applications, from construction machinery and agricultural equipment to industrial hydraulic systems, mining machinery, material-handling units, and mobile hydraulic machines. They facilitate the smooth distribution of hydraulic fluid to multiple actuators, cylinders, or control lines. Their compatibility with different thread types and standards makes them incredibly versatile for assembling or modifying hydraulic circuits. These tees are vital for maintaining system efficiency, preventing pressure drops, and ensuring reliable operation in heavy-duty and continuous-use hydraulic applications.
