Monel Ball Valve

Home > Monel > Monel Ball Valve

Anwar Tubefittings, located in Manama, Bahrain, has built a solid reputation as a reliable manufacturer and supplier of top-notch piping and flow-control components, including Monel Ball Valves. With a focus on precision engineering and a commitment to international quality standards, they cater to various industries like oil and gas, petrochemical, chemical processing, marine, offshore platforms, and power generation. Their Monel ball valves are crafted to ensure tight shut-off, exceptional resistance to corrosion, and dependable long-term performance, even in the most challenging and corrosive environments. Anwar Tubefittings provides robust, high-performance solutions that guarantee the safe and efficient operation of critical fluid control systems.

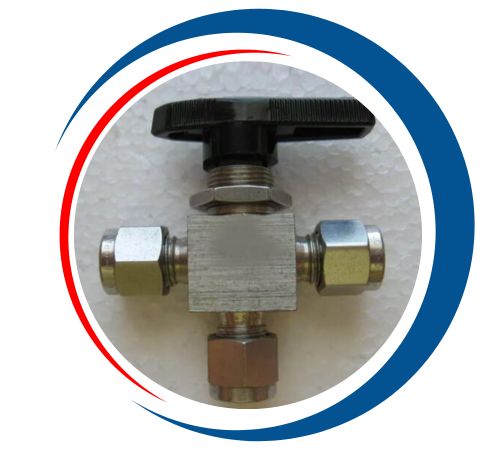

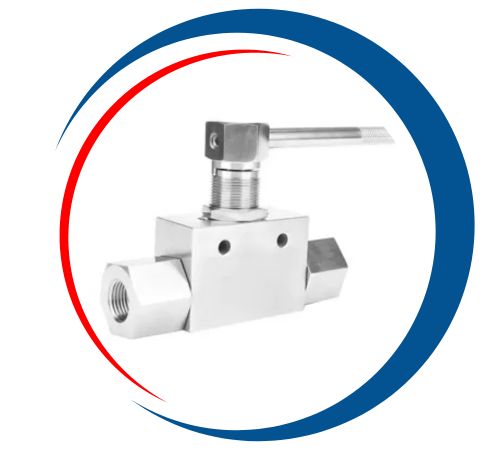

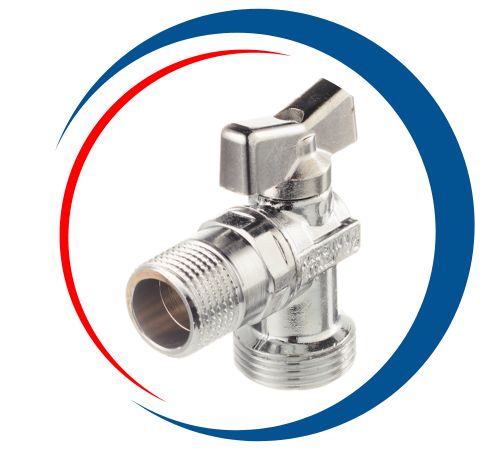

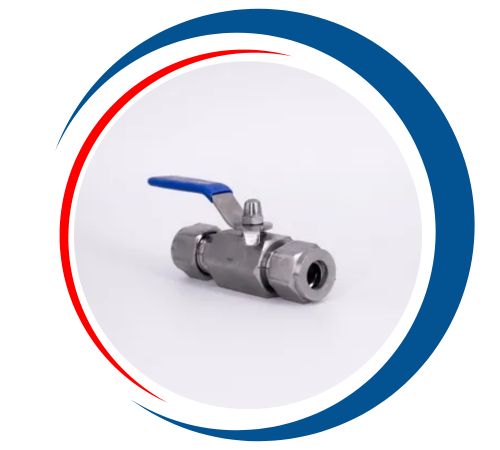

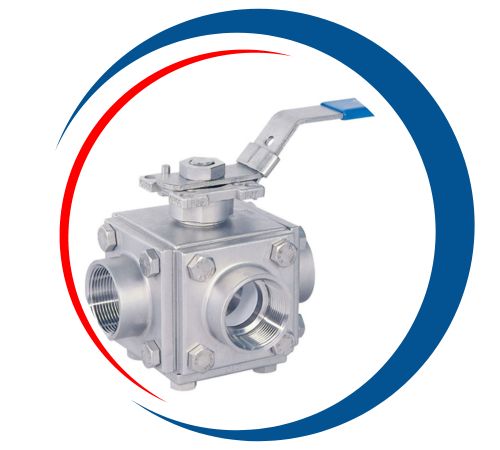

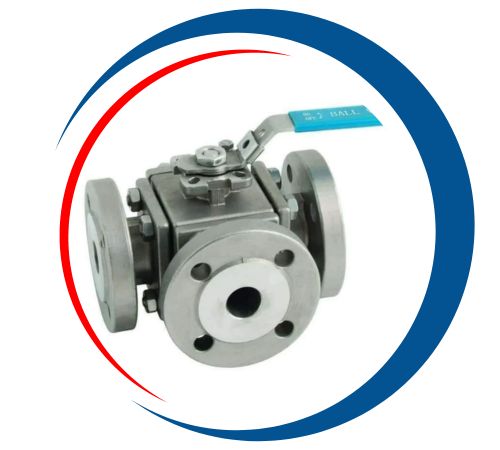

Monel Instrumentation Ball Valve Manufacturer in Manama, Monel Alloy Compression Ball Valve in Hamad Town, Monel Hydraulic Ball Valve Supplier in Riffa , Monel High Pressure Ball Valve Price List in Manama, Monel 2 Way Ball Valve Price in Hamad Town, Monel Alloy 3 Way Ball Valve in Manama, Bahrain, Monel 4 Way Ball Valve Price in Sitrah, Monel 5 Way Ball Valve Supplier in Riffa , Monel High Pressure Ball Valve Price List in A'ali

Monel ball valves are made of a nickel-copper alloy, which is about 63% nickel, 28-34% copper, with small amounts of iron, manganese, carbon and silicon These materials provide excellent corrosion resistance, especially in salt water and acidic environments. Technically Monel ball valves exhibit tensile strengths of about 550-620 MPa and yield strengths of 240-345 MPa, providing durability and stability Advantages include resistance to seawater, acid and special alkalies and the ability to operate at high temperatures. role models in various industries.

Monel Ball Valve Specifications

STANDARD	ASTM A494 / ASME SA494 API 600/BS1414, ASME B 16.34, ASME B 16.10, ASME B 16.5, API 598/BS EN 12266-1,ASME B 16.25
VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Monel Ball Valve Chemical Composition

Material	C	Mn	Si	S	Cu	Fe	Ni	Cr
Monel	0.30 max	2.00 max	0.50 max	0.24max	28.0-34.0	2.50 max	63.00 min	–

Monel Ball Valve Mechanical Properties

Element	Yield Strength (0.2%Offset)	Melting Point	Density	Elongation	Tensile Strength
Monel	Psi – 35,000 , MPa – 240	1350 °C (2460 °F)	8.8 g/cm3	40 %	Psi – 80,000 , MPa – 550

Monel Ball Valve Equivalent

STANDARD

WNR Material Number

UNS

JIS

GOST

AFNOR

Monel 400

2.4360

N04400

NW 4400

NA 13

МНЖМц 28-2,5-1,5

NU-30M

NiCu30Fe

Top Monel Ball Valve Manufacturing Company in Manama

These Monel Ball Valves are made from high-quality nickel-copper alloys, such as Monel 400 and Monel K500, which are known for their remarkable resistance to seawater, acids, alkalis, and chloride stress corrosion cracking. These alloys boast superior tensile and yield strength, excellent toughness, and stability under high pressures and temperature fluctuations. The precision-engineered ball mechanism guarantees smooth operation, leak-proof sealing, and a long service life, even in harsh chemical or marine settings.

Types of Monel Ball Valve

Monel Alloy High Pressure Ball Valve in Hamad Town, Monel 2 Way Ball Valve Supplier in Riffa , Monel 3 Way Ball Valve in Manama, Bahrain, Monel Alloy 3 Way Ball Valve Price List in Manama, Monel 5 Way Ball Valve Price in Hamad Town, Monel Instrumentation Ball Valve Price in Sitrah, Monel Compression Ball Valve Supplier in Riffa , Monel Hydraulic Ball Valve Manufacturer in Manama

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel Ball Valve in Manama, Bahrain

You’ll find these ball valves widely utilized in offshore oil and gas facilities, marine systems, chemical and petrochemical plants, desalination units, and power generation industries. They ensure reliable flow control, protect downstream equipment, and uphold operational safety in corrosive and high-temperature conditions. Engineers and industrial clients favor Monel Ball Valves for their outstanding corrosion resistance, mechanical reliability, and extended service life. With their sturdy construction and high-alloy composition, they are a trusted choice for mission-critical flow-control applications.

Monel Ball Valves Uses

Monel ball valves are widely used in applications requiring reliable operation at high temperatures. Because of their excellent resistance to salt water, they are ideal for marine applications such as seawater systems and desalination plants. These valves are also commonly used in the chemical, petrochemical, and oil and gas industries to handle highly acidic, alkaline, and chloride waters In addition, Monel ball valves are suitable for offshore drilling , energy generation, and heat exchanger, including high strength , Corrosion resistance is also important Their durability and resistance to harsh conditions make them perfect for demanding industrial applications.
