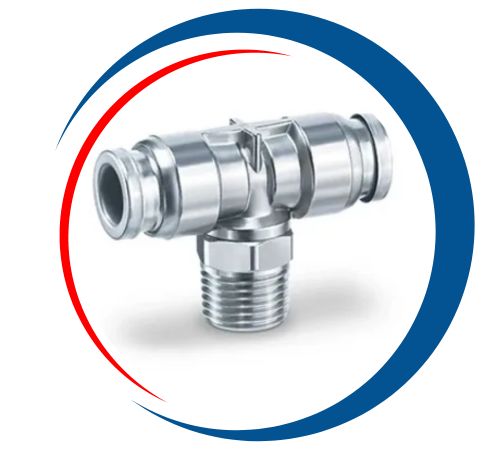

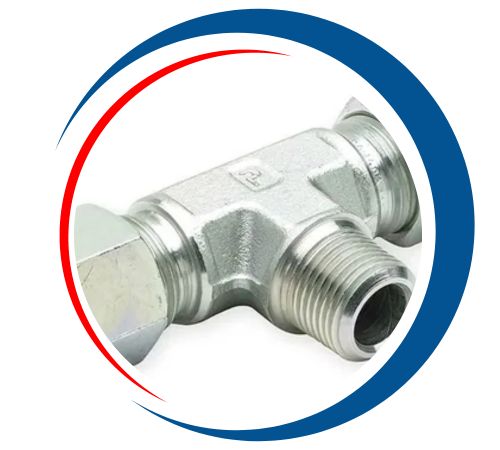

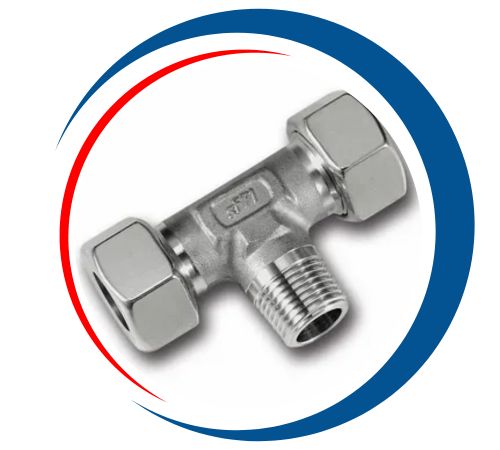

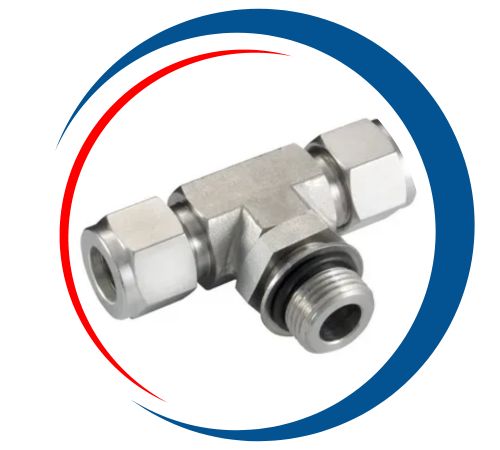

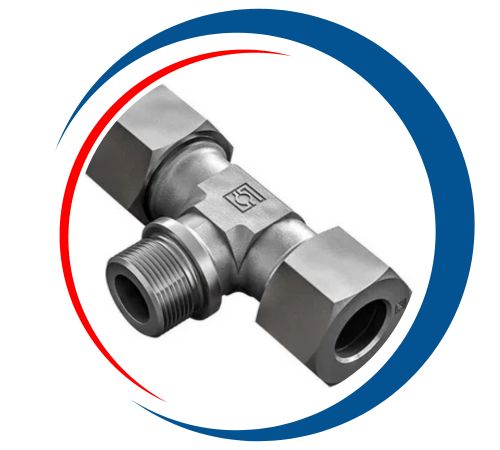

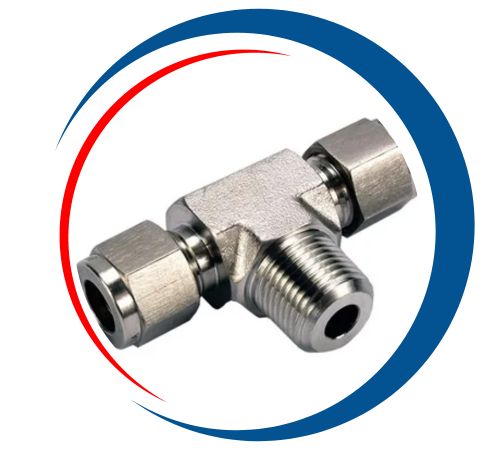

A Male Branch Tee is a popular hydraulic and pneumatic fitting that connects three lines, ensuring smooth flow distribution within a system. It has two female ends and one male-threaded branch, making it easy to integrate with pipes, tubes, or hoses. Crafted with precision, Male Branch Tees guarantee leak-free, high-pressure performance and compatibility with various thread standards. They play a crucial role in creating branch connections without sacrificing the system’s strength, reliability, or pressure capacity, making them a trusted choice for industrial, automotive, and fluid-handling applications.
Typically, Male Branch Tees are made from high-strength materials like carbon steel, stainless steel, or brass. These materials offer excellent mechanical properties, including high tensile strength, corrosion resistance, and durability under vibration and pressure changes. Stainless steel versions provide superior chemical resistance, while carbon steel tees excel in high-pressure situations. Brass tees are known for their good machinability and resistance to dezincification. Their robust mechanical integrity ensures a long service life and reliable performance, even in tough operating conditions.
| Mcneil part no. | Equivalent Part no. Type 1 | Equivalent part no Type 2 | NPT FEMALE PIPE SIZE P | LX | ODT-ØT(INCHES) | Ø E | BODY HEX F | C | NUT HEX W | D | L1 |
| 2-MBTD-2N | -200 – 3 – 2TTM | 2MBT2N | 1/8 | 0.70 | 1/8 | 0.09 | 9/16 | 0.60 | 7/16 | 0.50 | 1.86 |
| 2-MBTD-4N | -200 – 3 – 4TTM | 2MBT4N | 1/4 | 0.92 | 1/8 | 0.09 | 9/16 | 0.60 | 7/16 | 0.50 | 1.94 |
| 3-MBTD-2N | -300 – 3 – 2TTM | 3MBT2N | 1/8 | 0.70 | 3/16 | 0.12 | 9/16 | 0.63 | 7/16 | 0.54 | 1.92 |
| 4-MBTD-2N | -400 – 3 – 2TTM | 4MBT2N | 1/8 | 0.74 | 1/4 | 0.19 | 9/16 | 0.70 | 9/16 | 0.60 | 2.12 |
| 4-MBTD-4N | -400 – 3 – 4TTM | 4MBT4N | 1/4 | 0.92 | 1/4 | 0.19 | 9/16 | 0.70 | 9/16 | 0.60 | 2.12 |
| 5-MBTD-2N | -500 – 3 – 2TTM | 5MBT2N | 1/8 | 0.82 | 5/16 | 0.19 | 9/16 | 0.73 | 5/8 | 0.64 | 2.34 |
| 5-MBTD-4N | -500 – 3 – 4TTM | 5MBT4N | 1/4 | 1.01 | 5/16 | 0.19 | 9/16 | 0.73 | 5/8 | 0.64 | 2.34 |
| 6-MBTD-4N | -600 – 3 – 4TTM | 6MBT4N | 1/4 | 1.00 | 3/8 | 0.28 | 13/16 | 0.86 | 11/16 | 0.66 | 2.40 |
| 6-MBTD-6N | -600 – 3 – 6TTM | 6MBT6N | 3/8 | 1.11 | 3/8 | 0.28 | 13/16 | 0.76 | 11/16 | 0.66 | 2.62 |
| 8-MBTD-6N | -810 – 3 – 8TTM | 8MBT6N | 3/8 | 1.11 | 1/2 | 0.38 | 13/16 | 0.86 | 7/8 | 0.90 | 2.84 |
| 8-MBTD-8N | -810 – 3 – 8TTM | 8MBT8N | 1/2 | 1.30 | 1/2 | 0.41 | 13/16 | 0.86 | 7/8 | 0.90 | 2.84 |
| 10-MBTD-8N | -1010 – 3 – 8TTM | 10MBT8N | 1/2 | 1.41 | 5/8 | 0.47 | 1 | 0.86 | 1 | 0.96 | 3.06 |
| 12-MBTD-12N | -1210 – 3 – 12TTM | 12MBT12N | 3/4 | 1.45 | 3/4 | 0.62 | 1-1/16 | 0.86 | 1-1/8 | 0.96 | 3.14 |
| 14-MBTD-12N | -1410 – 3 – 12TTM | 14MBT12N | 3/4 | 1.50 | 7/8 | 0.62 | 1-3/8 | 0.86 | 1-1/4- | 1.02 | 3.52 |
| 16-MBTD-12N | -1610 – 3 -12TTM | 16MBT12N | 3/4 | 1.66 | 1 | 0.62 | 1-3/8 | 1.04 | 1-1/2 | 1.23 | 3.88 |
| 16-MBTD-16N | -1610 – 3 -16TTM | 16MBT16N | 1 | 1.84 | 1 | 0.88 | 1-3/8 | 1.04- | 1-1/2 | 1.23 | 3.88 |
At Anwar Tube Fittings, we are the leading supplier, manufacturer, and exporter of Male Branch Tee in Manama, Bahrain. Our state-of-the-art manufacturing facilities, strategically located in the Bahrain, empower us to provide high-quality solutions tailored to your specific requirements. With an extensive inventory of various premium materials, we are well-equipped to meet your needs efficiently. Our dedication to excellence and operational efficiency ensures we consistently maintain available stock, making us your trusted partner for reliable Union Cross fittings in various applications.
Anwar Tube Fittings is a leading supplier and Stockist of premium Male Branch Tee in Manama, Bahrain. Our products are widely utilized across various industries, recognized for their strength, durability, and reliable performance in connecting multiple pipe sections. We are committed to delivering exceptional service and ensuring high levels of customer satisfaction. Our advanced manufacturing techniques set us apart in the fittings industry, enabling us to consistently provide top-quality Union Cross fittings while effectively addressing the unique requirements of our customers.
Contact us to get a quick quote for your requirement.
You’ll find Male Branch Tees used extensively in hydraulic, pneumatic, and industrial fluid systems. They play vital roles in connecting actuators, cylinders, pumps, and control valves in construction equipment, agricultural machinery, mining systems, material-handling units, and manufacturing lines. Their ability to connect different thread types adds flexibility to system design and maintenance. These tees are also utilized in refrigeration, fuel lines, lubrication circuits, and compressed air systems. With their dependable sealing performance, mechanical strength, and ease of installation, they are essential for maintaining efficient and leak-free operations.
Please feel free to contact us if you need any further information or for enquiry.
