PP Ball Valve

Home > PP Ball Valve

Anwar Tubefittings, located in Manama, Bahrain, stands out as a trusted manufacturer and supplier of top-notch piping and flow-control products, including PP (Polypropylene) Ball Valves. With a reputation for precision engineering and a commitment to international quality standards, the company provides durable and efficient solutions for various industries, such as water treatment, chemical processing, irrigation, pharmaceuticals, and general industrial operations. Their PP ball valves are crafted to ensure smooth flow control, resist corrosion, and deliver long-lasting performance, making them perfect for situations where metal valves might be vulnerable to chemical damage. Anwar Tubefittings consistently offers reliable products tailored to meet diverse industrial needs.

PP ball valve Manufacturer In Manama, PP ball valve In Riffa , PP ball valve Sitrah, PP ball valve Hamad Town. PP ball valve Jebel Ail, PP ball valve Supplier In Manama, Bahrain.

Polypropylene (PP) ball valves are made from a thermoplastic polymer, providing excellent chemical resistance and lightweight properties. They feature a spherical closure element that allows for quick on-off flow control. The mechanical properties of PP include good tensile strength, impact resistance, and flexibility, making them suitable for various applications, including water treatment and chemical processing. Advantages of PP ball valves include corrosion resistance, low maintenance, cost-effectiveness, and the ability to operate at lower temperatures. Their durable design ensures long-lasting performance in demanding environments.

PP Ball Valve Specifications

Material Of Construction	Unplasticized Poly Vinyl Chloride	Construction	Multi Piece Body
Design	Single body moulded	Test pressure	07 kg./cm2
Max working temp	60 c (consistently)	Size Range	15 m to 80 mm
Connection End	Solid Plain and Ball Valve	Standard	As per requirement

PP Flange End Ball Valve Material of Construction

Material Specification
No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body”O”Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem “O” Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Polypropylene Flange End Ball Valve Dimensions

Size		L	T	OD	ID	H1	H
In.	MM
1/2″	15MM	129	12.5	100	13.5	130	69
3/4″	20MM	142	14	101	19	131	75
1″	25MM	160	20	123	24	165	89
1 1/2″	40MM	182	20	140	38	197	109
2″	50MM	208	22	165	50	200	121
2 1/2″	65MM	230	25	185	63	255	144
3″	80MM	251	25	201	75	255	150
4″	100MM	302	28	228	100	350	182
6″	150MM	428	30	300	150	–	236
8″	200MM	505	32	360	201	–	325
10″	250MM	570	34	425	242	–	310
12″	315MM	590	35	487	300	–	309

Top PP Ball Valve Manufacturing Company in Manama

These PP Ball Valves are made from high-quality polypropylene, a lightweight yet robust thermoplastic celebrated for its outstanding resistance to a wide array of chemicals, acids, and corrosive substances. They boast impressive tensile strength, dimensional stability, and durability, all while keeping fluid friction low thanks to their smooth internal surfaces. Capable of withstanding moderate temperatures and pressures, these valves are an excellent choice for non-metallic piping systems. Their design promotes easy operation, tight sealing, and minimal maintenance, ensuring cost-effective performance over a long service life.

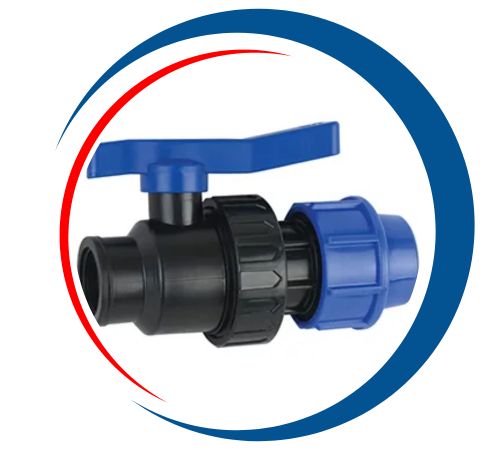

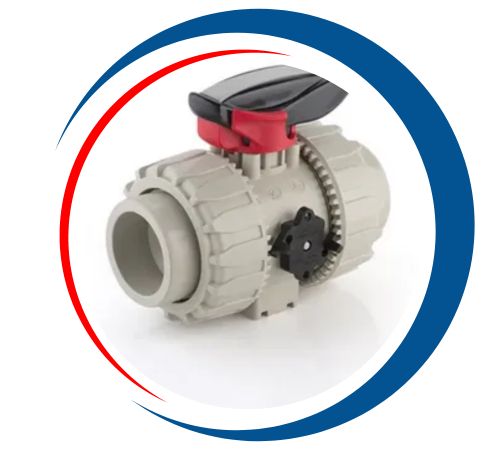

Types of PP Ball Valve

PP ball valve Manufacturer In Manama, PP ball valve In Riffa , PP ball valve Sitrah, PP ball valve Hamad Town. PP ball valve Jebel Ail, PP ball valve Supplier In Manama, Bahrain.

Largest Manufacturer and Supplier of PTFE Ball Valve in Manama, Bahrain

You’ll find these valves in water treatment plants, chemical dosing systems, irrigation setups, laboratory applications, food and beverage processing, and various industrial fluid-handling tasks. PP Ball Valves are particularly well-suited for managing corrosive chemicals, low-pressure fluids, and applications that require lightweight, non-reactive components. Their resistance to rust, scaling, and chemical degradation makes them a go-to option for engineers and operators looking for dependable, leak-proof flow control solutions in challenging environments.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

PTFE Ball Valve Uses

PP ball valves are widely used in various industries due to their excellent chemical resistance and lightweight nature. Common applications include water treatment facilities, where they control water flow, and chemical processing plants, where they manage corrosive substances. They are also employed in food and beverage processing for safe fluid handling. Additionally, PP ball valves are utilized in HVAC systems, irrigation systems, and aquaculture for efficient fluid management. Their reliability and low maintenance requirements make them ideal for both residential and industrial applications.
