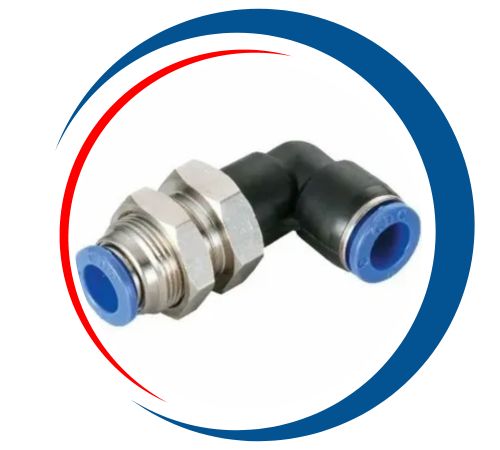

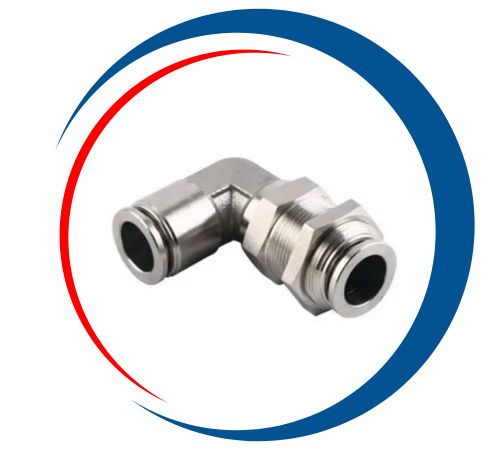

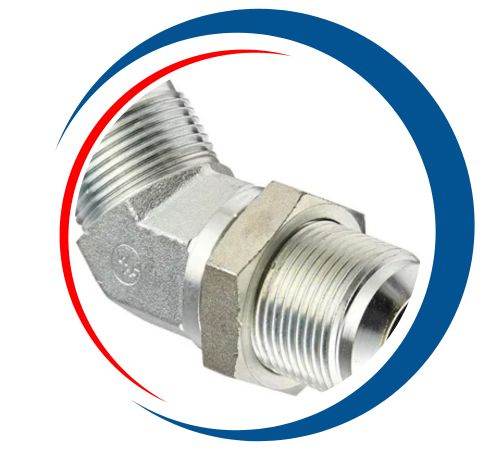

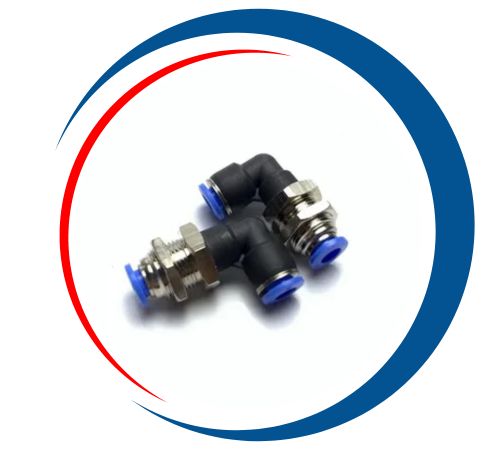

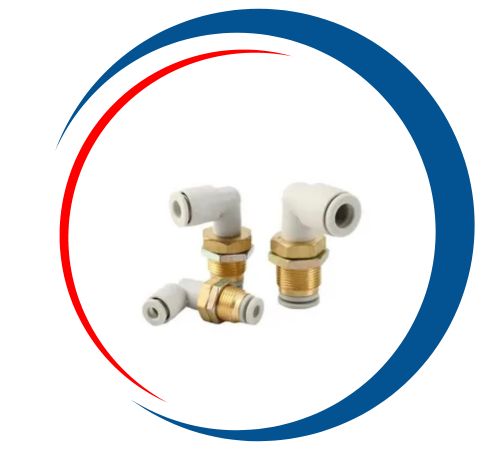

Anwar Tubefittings is a reputable manufacturer and supplier of top-notch Bulkhead Union Elbows, proudly based in Manama, Bahrain. With a strong focus on precision engineering and durable construction, this company specializes in fittings that guarantee secure, leak-proof connections for tubing that needs to navigate through walls or panels while changing direction. Their bulkhead union elbows are meticulously crafted using advanced machining techniques and rigorous quality control, ensuring reliable performance, resistance to corrosion, and a long lifespan. Catering to various industries like petrochemicals, water treatment, hydraulics, marine systems, and general engineering, Anwar Tubefittings has built a solid reputation throughout Bahrain and the GCC for providing dependable and efficient piping solutions.
These Bulkhead Union Elbows are made from sturdy materials such as stainless steel, brass, carbon steel, or specialized alloys, offering exceptional strength, corrosion resistance, and durability. They boast impressive mechanical properties, including high tensile strength, the ability to handle pressure securely, and stable performance across different temperatures. With precision-machined threads and a well-designed elbow shape, they ensure a leak-tight connection while allowing for smooth directional flow. Designed to endure vibration, mechanical stress, and harsh environments, these bulkhead union elbows promise long-lasting reliability even in demanding applications.
| Mcneil part no. | Equivalent Part no. Type 1 | Equivalent part no Type 2 | ODT-ØT(INCHES) | C | BODY HEX F | ODT-ØT1(INCHES) | Ø E | D | L | NUT HEX W | L1 |
| 1-BUD | -100-61 | 1BC1 | 1/16 | 0.43 | 5/16 | 1/16 | 0.05 | 0.34 | 0.84 | 5/16 | 1.24 |
| 2-BUD | -200-61 | 2BC2 | 1/8 | 0.60 | 7/16 | 1/8 | 0.09 | 0.50 | 1.50 | 7/16 | 2.02 |
| 3-BUD | -300-61 | 3BC3 | 3/16 | 0.63 | 9/16 | 3/16 | 0.12 | 0.54 | 1.59 | 7/16 | 2.11 |
| 4-BUD | -400-61 | 4BC4 | 1/4 | 0.70 | 5/8 | 1/4 | 0.19 | 0.60 | 1.03 | 9/16 | 2.27 |
| 5-BUD | -500-61 | 5BC5 | 5/16 | 0.73 | 11/16 | 5/16 | 0.25 | 0.64 | 1.81 | 5/8 | 2.39 |
| 6-BUD | -600-61 | 6BC6 | 3/8 | 0.76 | 3/4 | 3/8 | 0.28 | 0.66 | 1.87 | 11/16 | 2.45 |
| 8-BUD | -810-61 | 8BC8 | 1/2 | 0.86 | 7/8 | 1/2 | 0.41 | 0.90 | 2 | 7/8 | 2.80 |
| 10-BUD | -1010-61 | 10BC10 | 5/8 | 0.86 | 1-1/16 | 5/8 | 0.50 | 0.96 | 2.06 | 1 | 2.86 |
| 12-BUD | -1210-61 | 12BC12 | 3/4 | 0.86 | 1-3/16 | 3/4 | 0.63 | 0.96 | 2.31 | 1-1/8 | 3.11 |
| 14-BUD | -1410-61 | 14BC14 | 7/8 | 0.86 | 1-3/8 | 7/8 | 0.72 | 1.02 | 2.53 | 1-1/4 | 3.33 |
| 16-BUD | -1610-61 | 16BC16 | 1 | 1.04 | 1-5/8 | 1 | 0.88 | 1.23 | 2.81 | 1-1/2 | 3.77 |
At Anwar Tube Fittings, we are the leading supplier, manufacturer, and exporter of Bulkhead Union Elbow in Manama, Bahrain. Our state-of-the-art manufacturing facilities, strategically located in the Bahrain, empower us to provide high-quality solutions tailored to your specific requirements. With an extensive inventory of various premium materials, we are well-equipped to meet your needs efficiently. Our dedication to excellence and operational efficiency ensures we consistently maintain available stock, making us your trusted partner for reliable Union Cross fittings in various applications.
Anwar Tube Fittings is a leading supplier and stockist of premium Bulkhead Union Elbow in Manama, Bahrain. Our products are widely utilized across various industries, recognized for their strength, durability, and reliable performance in connecting multiple pipe sections. We are committed to delivering exceptional service and ensuring high levels of customer satisfaction. Our advanced manufacturing techniques set us apart in the fittings industry, enabling us to consistently provide top-quality Union Cross fittings while effectively addressing the unique requirements of our customers.
Contact us to get a quick quote for your requirement.
You’ll find Bulkhead Union Elbows widely used in systems where tubing needs to pass through tanks, enclosures, or panels while also changing direction. They’re commonly found in water treatment facilities, chemical processing units, hydraulic circuits, fuel systems, marine installations, and compressed air networks. These fittings are essential for secure fluid transfer, preventing leaks, and maintaining alignment in complex piping layouts. Their corrosion resistance and robust construction make them ideal for tough or high-pressure environments. In laboratory equipment, industrial machinery, and instrumentation setups, bulkhead union elbows deliver dependable performance and reliability.
